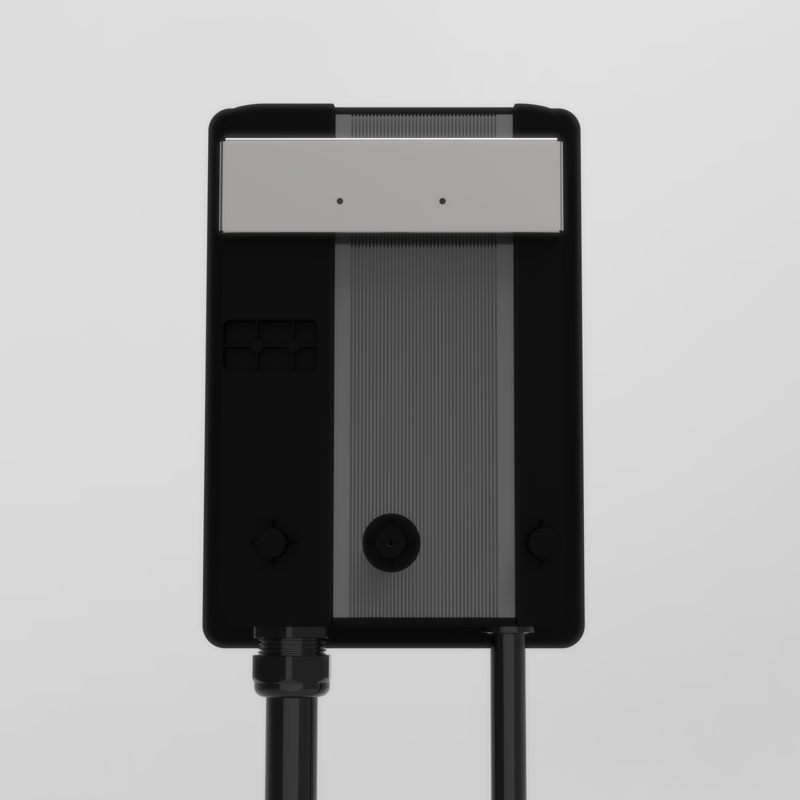

Injet Vision Series AC EV charger
INJET are proud to introduce our fully upgraded Injet Vision for personal use and commercial operation of EV charging stations. Multiple charging management through Bluetooth & WIFI & APP. With type 1 plug, 18ft cable and cable management, Injet Vision can be installed by wall-mounting and floor-mounting with charging post.
Feature
Charging Connector:
SAE J1772 (Type 1)
Maximum Power (Level 2 240VAC)：
10kw/40A; 11.5kw/48A
15.6kw/65A; 19.2kw/80A
Dimension(H×W×D)mm:
405×285×160
Indicator:
Multi-color LED indicate light
Display:
4.3-inch LCD touch screen
Installation:
Wall/Pole mounted
User interface & control
Remote Charging Control:
APP
Local Charging Control:
RFID card
OCPP:
OCPP 1.6J
Remote communication interface:
WiFi (2.4GHz) ; Ethernet (via RJ-45) ; 4G
Local communication interface:
Bluetooth ; RS-485
Environmental
Storage Temperature : -40 ~ 75℃
Operating Temperature : -30 ~ 55℃
Altitude : ≤2000m
Operating Humidity : ≤95RH, No water droplet condensation
Protection
Enclosure rated : Type 4/IP65
Earth Leakage Protection ：√ , CCID 20
Certification : ETL (for US and Canada), FCC, Energy Star
Over/Under Voltage Protection ：√
Over Load Protection ：√
Over-temp Protection ：√
Surge Protection ：√
Ground Protection ：√
Short Circuit Protection ：√
Technical Parameters
-
Maximum Power (Level 2 240VAC)
10kw/40A; 11.5kw/48A; 15.6kw/65A; 19.2kw/80A
-
Charging Connector
Type 1(SAE J1772)
-
Display
4.3-inch LCD touch screen
-
Dimension(H×W×D)mm
405×285×160
-
Installation
Wall/Pole mounted
-
Certification
ETL , FCC , Energy Star
-
Earth Leakage Protection
CCID 20
-
Enclosure rated
Type 4 / IP65
Features
-
Powerful Charging
● Up to 80A/19.2 kW of charging capacity
-
Simple Charging
● RFID cards & APP, adjustable from 6A to rated current
-
Multiple Connectivity
● LAN ; WiFi ; 4G optional
A variety of connection methods can meet any of your needs. -
Reliability&Durability
● Type 4 for all condition operation
● ETL, FCC, Energy Star Certification -
100% Compatible
● Fit for all EVs comply with SAE J1772 Type1 standard
APPLICABLE DESTINATIONS
-
Household
Suitable for home use, APP control is more convenient and smarter. Remote communication interface supports WiFi&Ethernet (via RJ-45)&4G. Local communication interface supports bluetooth&RS-485. Support family members to share.
-
Workplace
Equipped with an RFID card, allowing users to start and end charging sessions as well as lock and unlock the charger simply by scanning the card. It is especially suitable for internal installations in companies and teams, especially in scenarios where groups of users are restricted. Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail & Hospitality
Equipped with RFID card & APP. It is especially suitable for internal installations in retail & hospitality. Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
