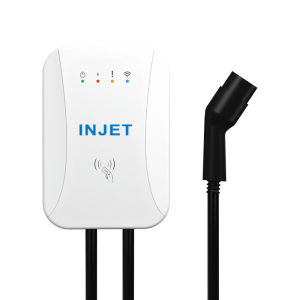

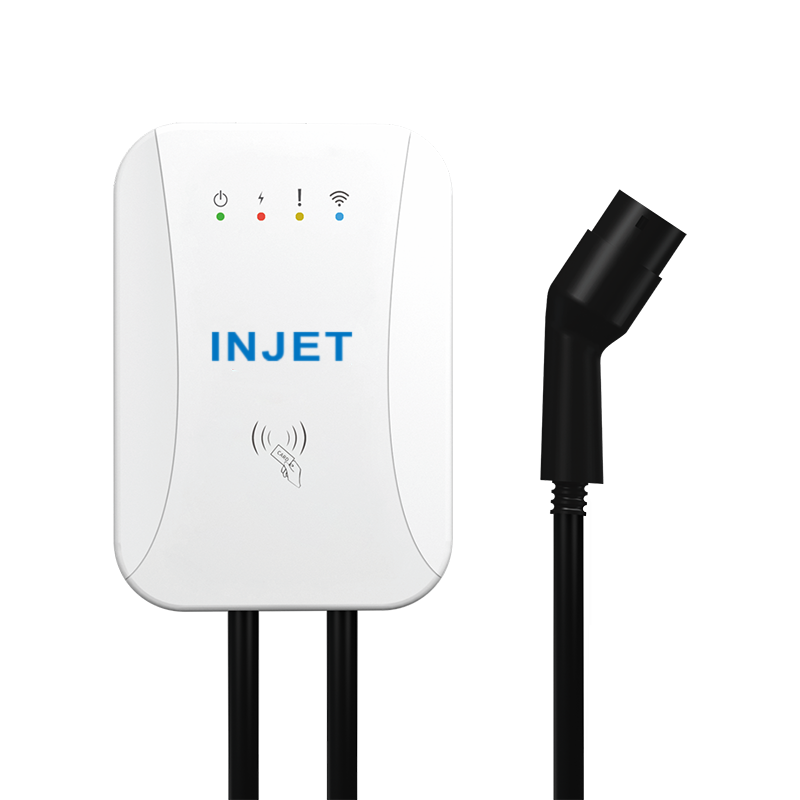

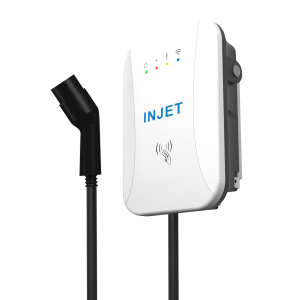

Injet Nexus 1 Phase Wallbox & Pole EV charger
Residential areas like apartment and dwellings.
Parking garage of office building hospital supermarket, motel etc. for commercial EV charging
EV infrastructure operators and service providers.
Injet Nexus is a Case C Wallbox (with charging cable).and an external Case B charging socket can be selected to replace the charging cable as needed.
Power Specification
Phase Number: 1-phase
AC Power Input Rating: 230VAC50/60Hz
Power Wiring: 3Wire-L1Nplus PE
AC Output Rating Power: 3.5kw 7kW
AC Output Rating Current: 16A 32A
Connector Type: lEC62196-2, Type 2 plug+5m charging cable
Connector Mechanical Operating Life: ≥10000times(Plug in& pull out with no load)
Userinterface &Control
Charging Control: APP-controlled, Button-controlled(Optional), Card-controlled
Indicators: 4 LED Indicators-Power/Connect/Charging/Fault
Communication interface: WIFI (2.4/5GHz) or Button and RS-485
OCPP Protocol(Optional): OCPP 1.6J(via Wifi)
Environmental
Storage Temperature: -40 to 75℃ ambient
Operating Temperature: -30 to 55℃ ambient
Operating Humidity: Up to 95% non-condensing
Altitude: ≤2000m
Protection
IP Code: IP65
Over Voltage Protection: √
Short Circuit Protection: √
Under Voltage Protection: √
Over Load Protection: √
Over-temp Protection: √
Leakage Protection: Yes, TypeA+DC6mA (meet IEC 62955) built-in
Ground Protection: Yes, designed for TN-C-S power supply system
No Earth Electrodes Protection: Optional, designed for the UK and other regions using TN-C/IT/TT power supply system
Technical Parameters
-
Phase number
1-Phase
-
Maximum Power
3.5kw 16A; 7kW 32A
-
Connector Type
lEC62196-2
-
Dimension (H*W*D)
310x220x95mm
-
Weight
<7kg
-
Charging Cable Length
5m or customize length(≤7.5m)
-
Enclosure Material
PC
-
Mounting type
Wallbox
Technical Parameters
-
Phase number
1-Phase
-
Maximum Power
3.5kw 16A; 7kW 32A
-
Connector Type
lEC62196-2
-
Dimension (H*W*D)
310x220x95mm
-
Weight
<7kg
-
Charging Cable Length
5m or customize length(≤7.5m)
-
Enclosure Material
PC
-
Mounting type
Pole
Features
-
Power Charging
Applicable to lEC Type 2 charging, and the maximum charging power up to 22kW.
-
Certifications
With CE certification-LVD ,RED RoHS, and passed REACH test applicable to the European.
-
Safe & Reliable
No earth electrodes protection designed for the UK and other regions using TN-C power supply system. Safe and reliable with multiple fault protection.
-
Multi-scenario Application

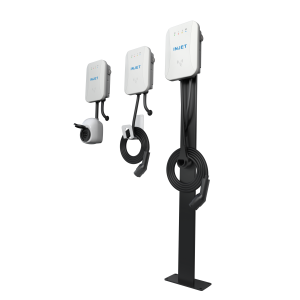

Suitable for household and commercial AC EV charging. Easy installation wall mounted or pole
mounted for optional. -
OEM&ODM
LOGO, color, function etc. are customizable. OEM/ODM including size shape etc. are available.
APPLICABLE DESTINATIONS
-
Household
Suitable for home use, APP control is more convenient and smarter. Remote communication interface supports WiFi & Ethernet (via RJ-45)&4G. Local communication interface supports bluetooth&RS-485. Support family members to share.
-
Workplace
Equipped with an RFID card, allowing users to start and end charging sessions as well as lock and unlock the charger simply by scanning the card. It is especially suitable for internal installations in companies and teams, especially in scenarios where groups of users are restricted. Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail & Hospitality
Equipped with RFID card & APP. It is especially suitable for internal installations in retail & hospitality. Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
