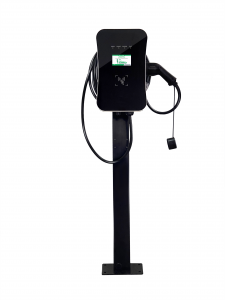

Floor Mounted Charging Stations
I’m built to support most of European electric vehicles with the plug connector IEC 62195-2 (Type 2), no matter the grid support 1 phase or 3 phases, you can find the right chargers.
Smart
OCPP 1.6 or 2.0.1 is enable it to support software and remotely control the charging sessions.
Safe
Shockproof, over-temp protection, short circuit protection, over and under voltage protection, over load protection, ground protection, surge protection.
Durable
It’s built for long-time service, water proof and designed to work at -30 to 55 °C ambient temperature, never fear the freezing or the scorching heat.
OEM & ODM
Costumer can customized some features including the color, logo, functions , casing etc.
Technical Parameters
-
Charging Capacity
7kW, 11kW, 22kW
-
Power Input Rating
Single phase, 220VAC ± 15%， 3 phases 380VAC ± 15%, 16A and 32A
-
Output Plug
IEC 62196-2 (Type 2) or SAE J1772 (Type1)
-
Configurations
LAN (RJ-45) or Wi-Fi connection, Optional MID meter add-on
-
Operating Temperature
- 30 to 55 ℃ （-22 to 131 ℉） ambient
-
Protection Ratings
IP 65
-
RCD
Type A or Type B
-
Installation
Pole Mounted
-
Weight & Dimension
410*260* 165mm (12kg) / 1400*200*100（8kg)
-
Certification
CE, RoHS, REACH
Features
-
Easy to install
Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
-
Simple to charge
Plug & Charge, or Swapping card to charge, or controlled by App, it depends on your choice.
-
Compatible with all EVs
It's built to be compatible with all the EVs with the type 2 plug connectors. Type 1 is also available with this model
How to Install the Wallbox Charging Stations?
APPLICABLE DESTINATIONS
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail &Hospitality
Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
-
Workplace
Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
