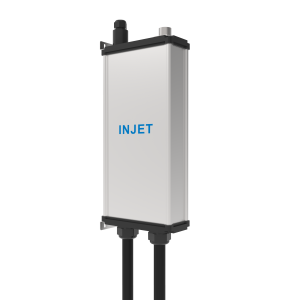

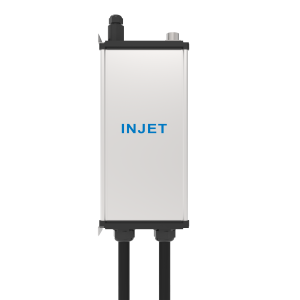

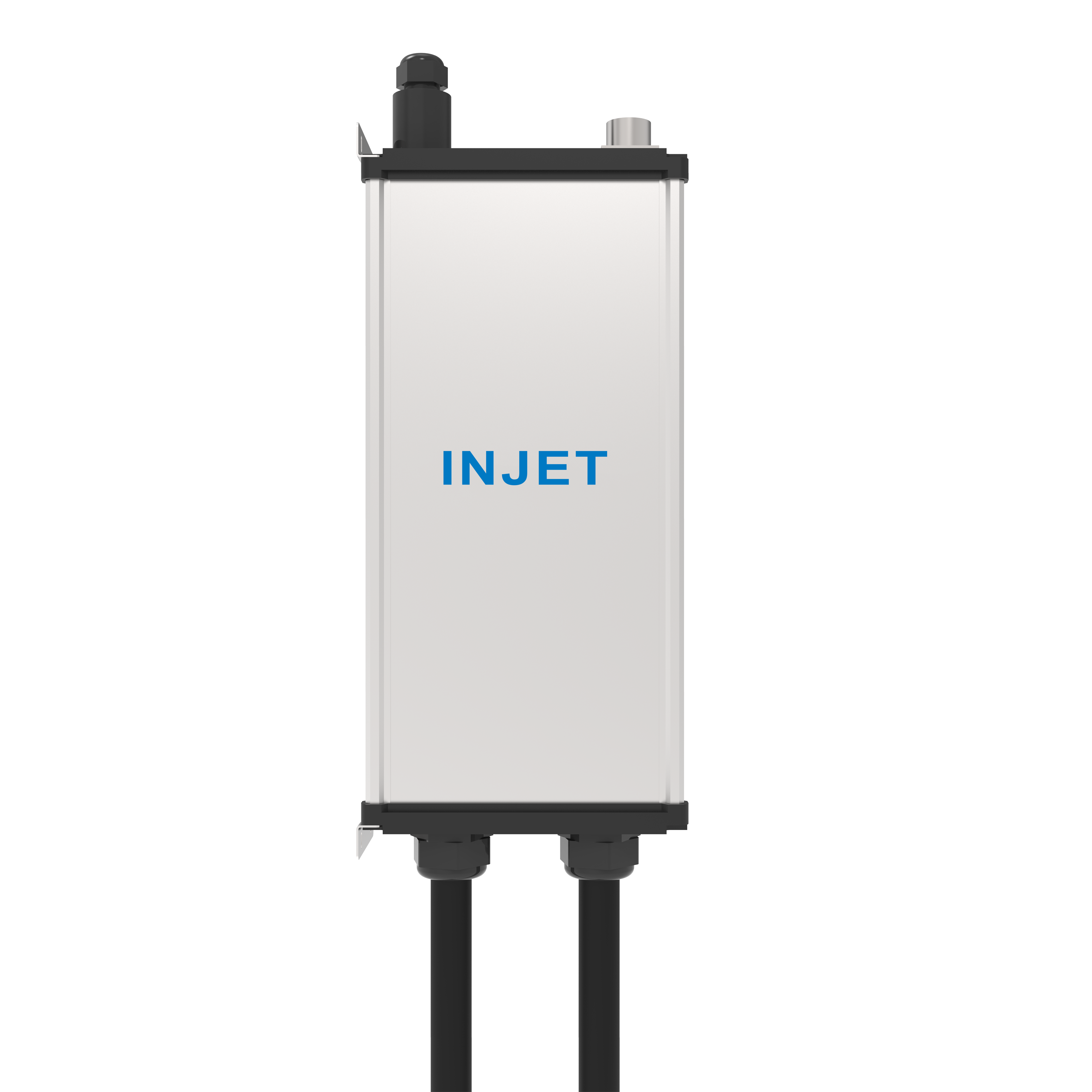

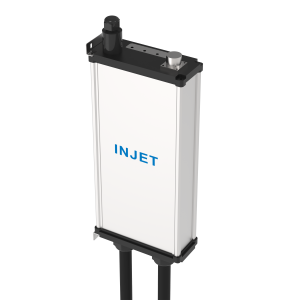

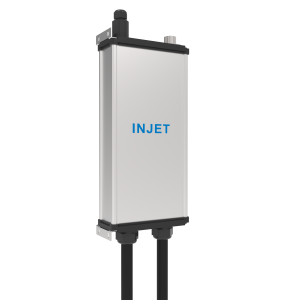

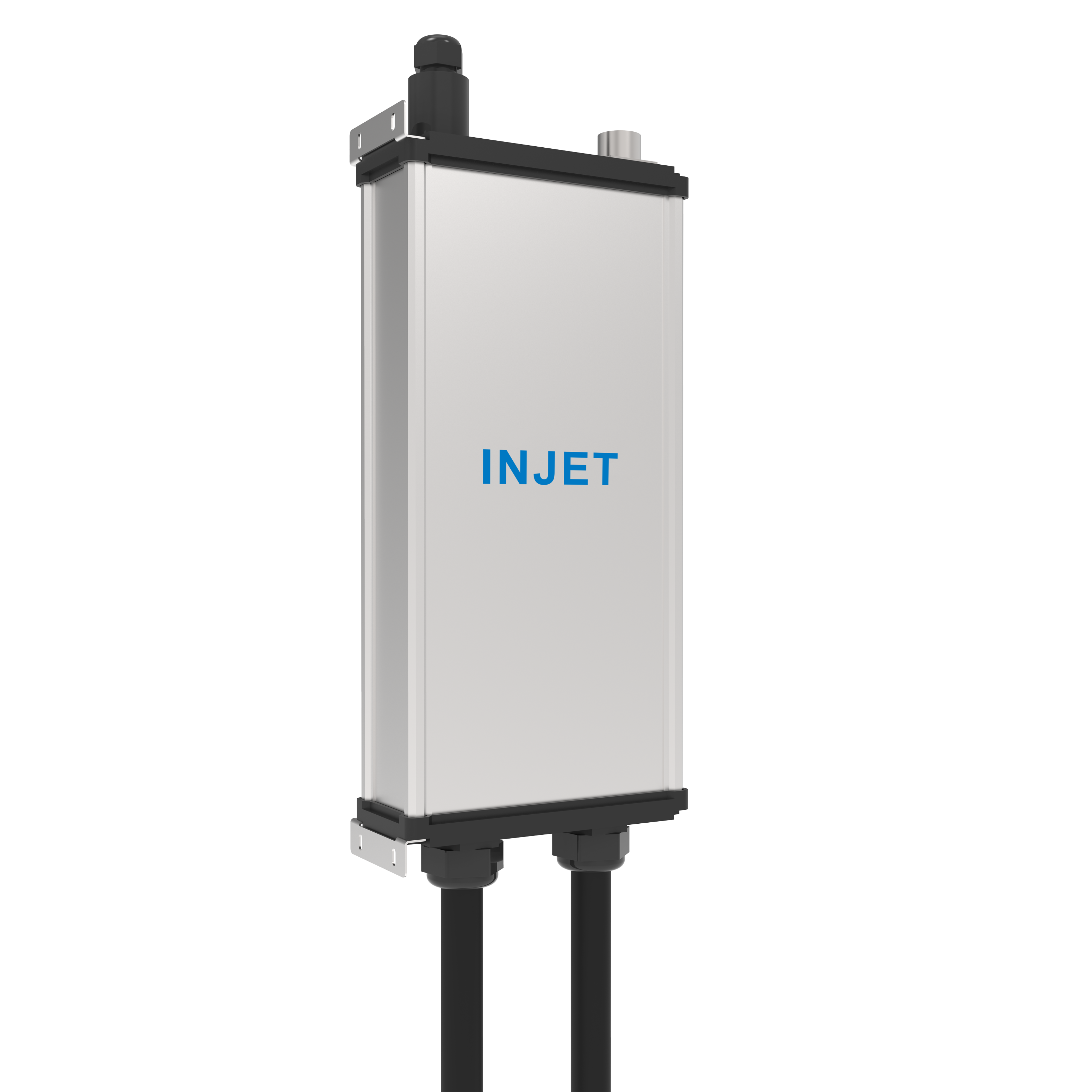

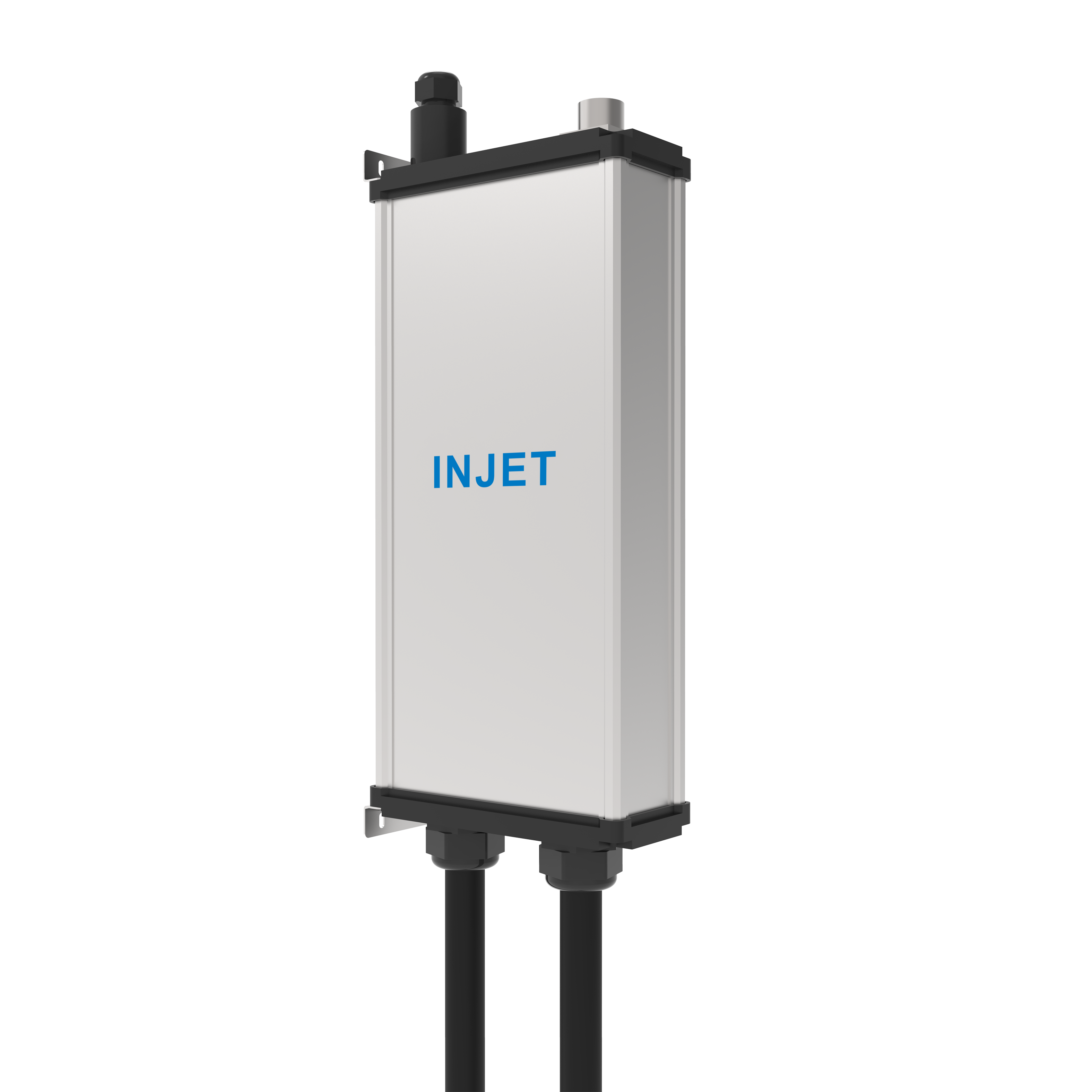

Charger Box
The Charger Box is modular design for appearance customization. Suitable for all commercial locations such as street lights, vending machines, and billboards. Monetize from your EV charging network by simply using our Charger Box with customizable case with screen to combine advertising earning into your pocket. Of course, OCPP 1.6J communication protocol available.
Electrical Parameters
Input Voltage: Level2, 240VAC (204-264VAC)
Rated Current: 48A
Input Circuit Terminal: L1/L2/GND
Branch Breaker: It is recommended that a charger should be equipped with dedicated MCB circuit for power supply.
Mechanical Parameters
Mounting: Mounted inside the customized cabinet
Charging Connector: SAE J1772 (Type1)
Dimension (H*W*D)mm: 450.5*189*90
Input Cable: 1000mm cable with terminal blocks
Output Interface: 600mm cable with terminal blocks
Weight: ≤ 5kg
Color: Silvery and Black
Material: Aluminum alloy
NEMA rating: Type 3S
Functional Description
Charging Control:
Local: “Plug-and-charge” or “USB DEBUG-controlled”
Remote: OCPP server control
Communication Interface:
Ethernet(RJ-45interface), USB (type A)
Communication protocol: OCPP 1.6J
Safety Protection
Surge protection: √
Over Temperature: √
Over/Under Voltage: √
Over Current: √
Ground Protection: √
Leakage Protection: √
Relay Stacking Protection: √
Parameters
-
Input Voltage
Level2, 240VAC
-
Rated current
48A
-
Dimension (H*W*D)
450.5*189*90mm
-
Charging connector
SAE J1772 (Type1)
-
Color
Silvery and Black
-
Material
Aluminum alloy
-
Weight
≤ 5kg
-
NEMA rating
Type 3S
Features
-
Multiple Scenarios
Suitable for all commercial locations such as street lights, vending machines, and billboards.
-
Safe & Reliable
Safe and reliable, with multiple fault protection. The Charger Box is designed according to UL standards and ETL certified.
-

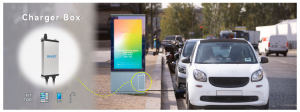

Billboard Charging
Monetize from your EV charging network by simply using our Charger Box with customizable case with screen to combine
advertising earning into your pocket. -
Small Volume
Stock size 450.5*189*90mm. The small size of the Charger Box allows it to be easily mounted on all commercial locations such as street lights, vending machines, and billboards.
APPLICABLE DESTINATIONS
-
Street Lights
Our Charger Box can be easily mounted on street lights. Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Billboards
Monetize from your EV charging network by simply using our Charger Box with customizable case with screen to combine
advertising earning into your pocket.
