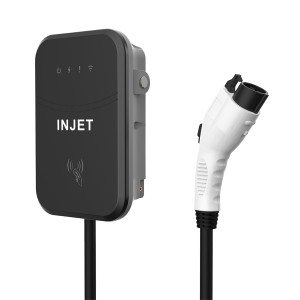

Injet Blazer US Series AC EV charger
This AC charger Injet Blazer is suitable for both domestic and commercial. The products have obtained UL (for US and Canada), FCC, Energy Star certificates in compliance with American standards. This EV wall box charger delivers a maximum power of 7 kW and 10kw, and there are two installation options: wall-mounted and floor-mounted. There are 4 LED indicators on the surface of the charger shell, including four states including power, charging, fault, and network. High quality production and design standards for safe and reliable use with multiple fault protection. Residual current protection CCID 20. Type 4 electrical enclosure, no need extra protection from Sunny, Rainy, Snowy and Windy weather.
Features
Charging Connector:
Input plug : NEMA 14-50P;
Output plug : SAE J1772 (Type 1)
Maximum Power：
7kw/32A Level 2 240VAC
10kw/40A Level 2 240VAC
Dimension(H×W×D,mm): 310×220×95

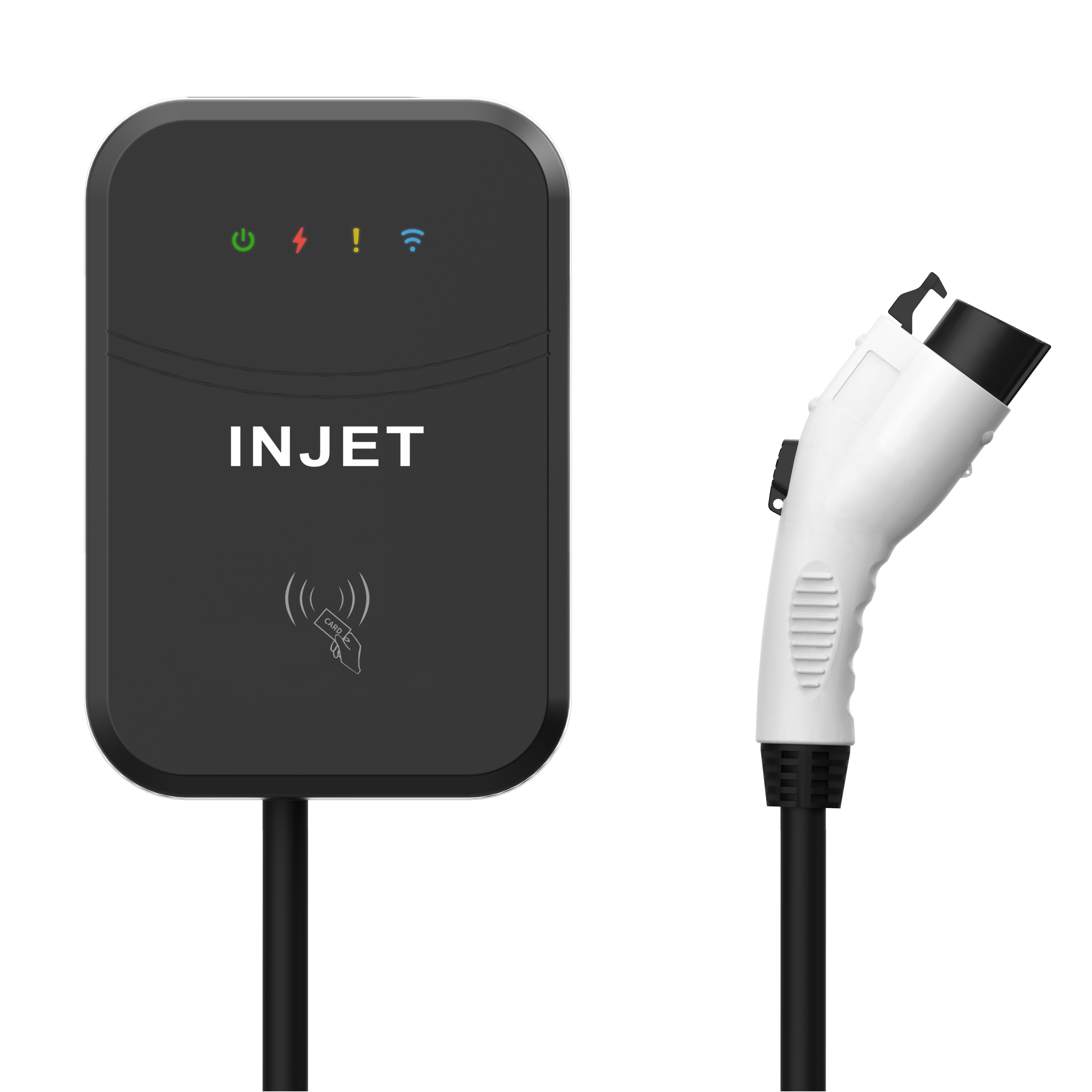

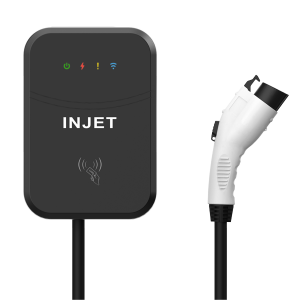

Indicator: 4 LED lights, indicate 4 statuses include power, charging, fault and network

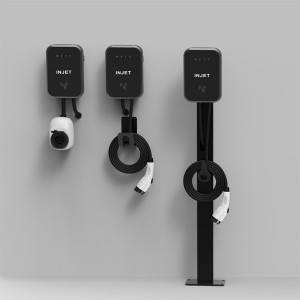

Installation : Wall/Pole mounted
Colour: Black front + grey back or OEM Color
User interface & control
Ethernet（RJ45）: Optional
RFID : Yes
Wifi : 2.4GHz
4G : Optional
RS485 : Optional
OCPP1.6J : Optional
APP : Optional
Environmental
Storage Temperature : -40 ~ 75℃
Operating Temperature : -30 ~ 55℃
Altitude : ≤2000m
Operating Humidity : ≤95RH, No water droplet condensation
Protection
Ingress Protection : Type 4
Residual current protection : CCID 20
Certification : UL(for US and Canada), FCC, Energy Star
Over/Under Voltage Protection ：√
Over Load Protection ：√
Earth Leakage Protection ：√
Over-temp Protection ：√
Surge Protection ：√
Ground Protection ：√
Short Circuit Protection ：√
Technical Parameters
-
Maximum Power
7kw/32A 240VAC ; 10kw/40A 240VAC
-
Input Plug
NEMA 14-50P
-
Output Plug
Type 1(SAE J1772)
-
Dimension (H*W*D)
310*220*95mm
-
Colour
Black front+grey back or OEM
-
Installation

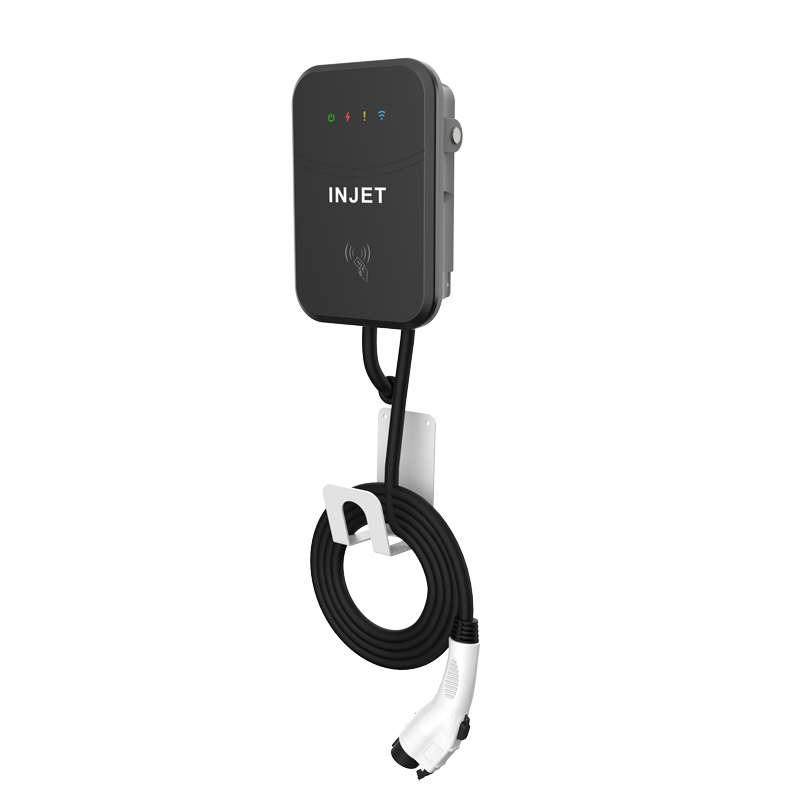

Wall mounted
-
Certification
UL , FCC , Energy Star
-
Residual Current Protection
CCID 20
Technical Parameters
-
Maximum Power
7kw/32A 240VAC ; 10kw/40A 240VAC
-
Input Plug
NEMA 14-50P
-
Output Plug
Type 1(SAE J1772)
-
Dimension (H*W*D)
310*220*95mm
-
Colour
Black front+grey back or OEM
-
Installation

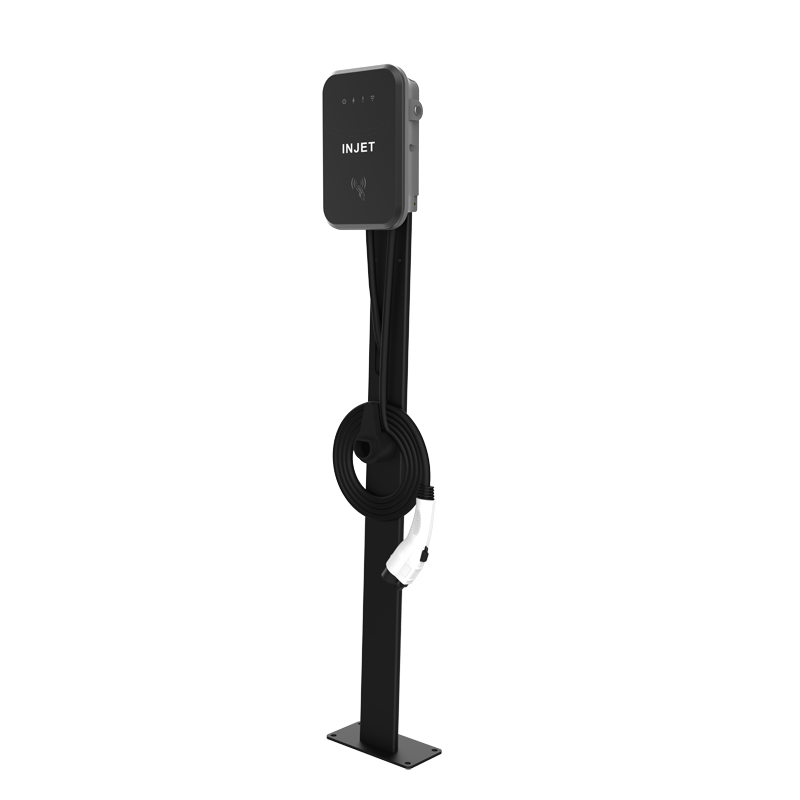

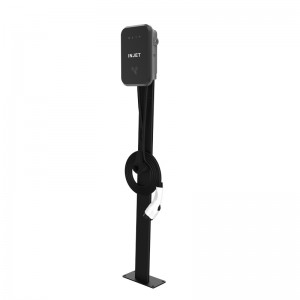

Floor mounted
-
Certification
CCID 20UL , FCC , Energy Star
-
Residual Current Protection
CCID 20
Features
-
Simply Charging
● RFID cards & APP & Plug and play. Three ways that depend your choice.
● Injet charging app is user friendly with different languages and support Apple & Android system. -
Easily Installation
● NEMA 14-50P input plug
● Full set of installation accessories -
100% Compatible
● Fit for all EVs comply with SAE J1772 Type1 standard
-
OEM or ODM Available
● Logo, brand, design, size, color, function, etc, customization available
-
Safe And Reliable
● TYPE 4 electrical enclosure, works under all conditions
● CCID 20 available
● UL, FCC, Energy Star Certification
APPLICABLE DESTINATIONS
-

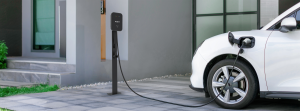

Household
Suitable for home use, APP control is more convenient and smarter. Support family members to share.
-
Workplace
Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail & Hospitality
Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
